E500/5 Interlocking Flooring 5mm

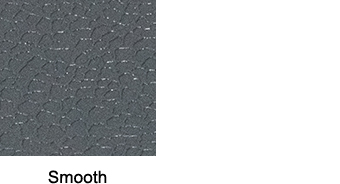

Available In Smooth

E500/5 Interlocking Floor Tile For  Light Industrial Applications

The E500/5 is the entry level version of the Ecotile interlocking floor tile range and is designed for commercial, domestic and light industrial applications. The tile incorporates the same proven interlocking design as the original 500/7 Ecotile.

At approximately 4.5mm thick, the 500/5 are the thinnest tiles we produce, but are still quick and simple to install over any hard surface. The 5 mm tile is available in several colours and once installed, will create a tough and hardwearing floor finish that will help you to reduce dust and noise in your facility.

Please note that the E500/5 is not recommended for use with fork or regular pallet truck traffic. It is possible to use very light wheeled trolleys with the E500/5 tiles but only up to a maximum weight of 300 kgs. For tougher usage please select the E500/7 or E500/10. This tile is not suitable for outdoor use, for outdoor flooring please click here.

Composition & Manufacture

Much like the rest of the E500 range, our 5 mm tiles are injection moulded and produced from the highest quality virgin PVC compound. We use REACH compliant material that enables our products to have excellent wear characteristics, chemical resistance, long term stability and stable electrical properties.

Ecotile are extremely aware of our carbon footprint and our impact on the environment. The E500/5 is produced from 100% recyclable material and don’t require any special tools or glues to be installed. Once the tiles have reached the end of their lifespan, we will collect the tiles free of charge and recycle them in our manufacturing plant. The recycled material is used to produce discounted tiles that are usually sold to customers who want to install tiles in their homes or garages. Please note that this tile is not suitable for outdoor use.

Where Can I Use The E500/5?

The 500/5 tile is designed for light duty applications, but can still withstand heavy foot traffic. Wheels and heavy items rolling over the floor may damage the tiles. In those cases, we recommend that you purchase a thicker tile. If you are not sure which tile you need, don’t hesitate to contact us and speak to one of our flooring experts.

Finish: Smooth
Material: PVC
Joint: Dovetail
Dimensions: 500mm x 500mm
Thickness: 4.6mm variations +/- 0.3mm
Weight: 5.4kg/m2
Hardness: 90-92 Shore A
ESD Version: Yes
Thermal Insulation Properties: R Value – 1.26
Sound Insulation Properties: Up to 46db
Fire Rating: Bfl-S1

  • Schools
  • Shops
  • Offices
  • Exhibitions
  • Utility Rooms
  • Assembly Workshops
  • Easy to maintain & clean
  • Excellent slip-resistance (R10)
  • Reduces worker fatigue
  • Ideal for uneven or damp floors
  • Expected lifespan of 20 + years
  • Quick & simple to install
  • No damp proof membrane, screed or adhesives required
  • Fire retardant – Class Bfl S1
  • No additional toxic chemicals, 100% recyclable
