Anti-fatigue floor tiles by Ecotile

- Significantly improves comfort and productivity
- Can be inserted directly into standard Ecotile floors
- Ideal for areas where staff stand for long periods
↓
Download PDF Datasheet
Product

E500/7/AF Anti-fatigue Floor Tiles

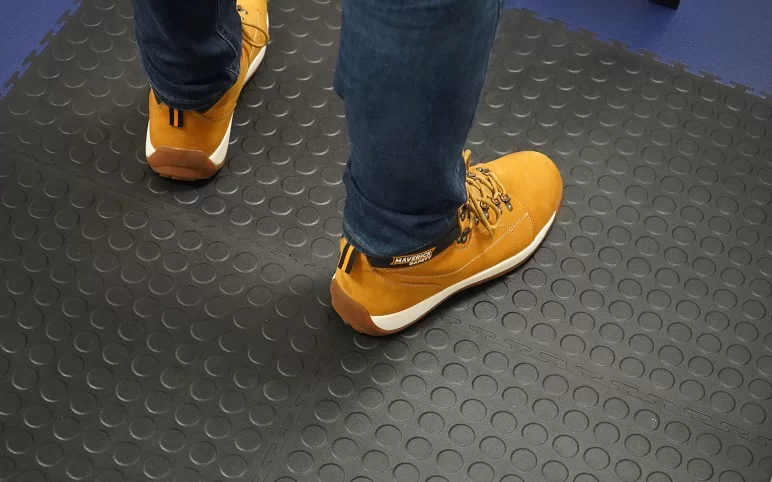

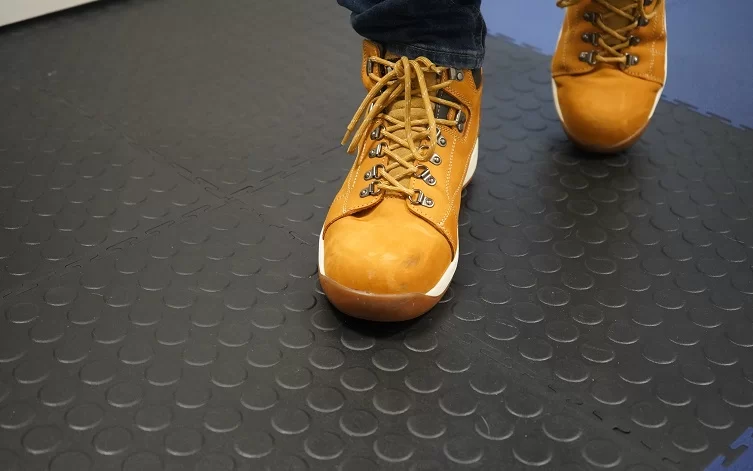

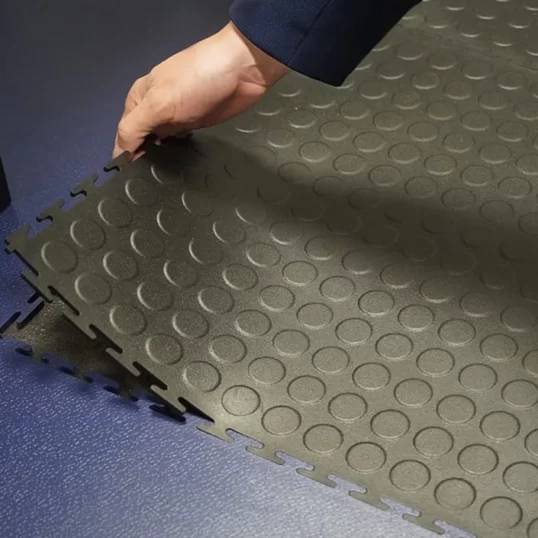

Our E500 anti-fatigue floor tiles feature an ergonomic raised disc surface for designated standing areas. They can be used on their own or seamlessly integrated into a standard E500/7 floor.

Colours

Get a free quote
->

Specifications

->

Finish: Raised Disc
Material: Anti-fatigue PVC
Joint: T-Joint
Sustainability: 100% Recyclable
Dimensions: 500mm x 500mm
Thickness: 7.6mm variations +/- 0.3mm
Weight: 9kg/m2
Hardness: 62 Standard ISO Shore A (soft)
Thermal Insulation Properties: R Value – 1.58
Sound Insulation Properties: Up to 46db
Fire Rating: Bfl-S1
Chemical Resistance: Good

Perfect for

->

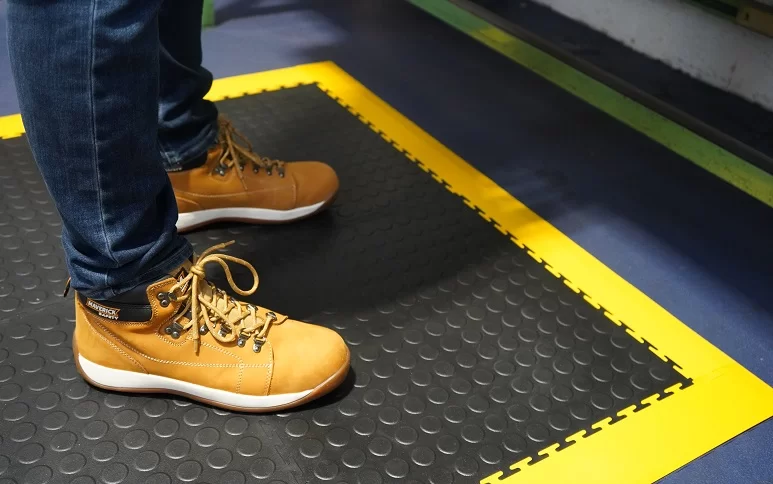

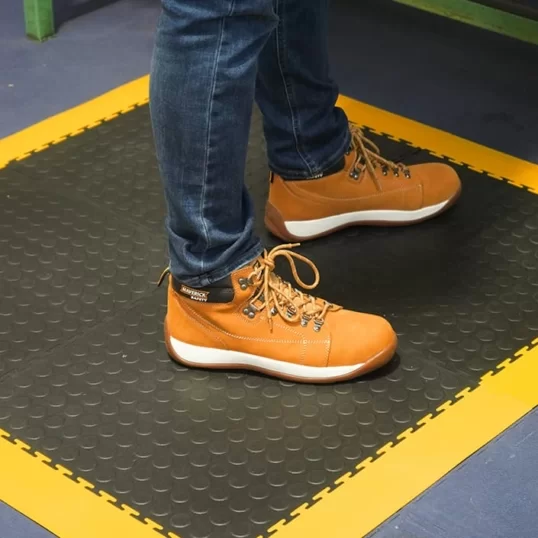

The E500/7 anti-fatigue tiles are ideal for areas where employees stand for extended periods, such as assembly lines, packing stations, inspection zones and workbenches. Designed to reduce fatigue, improve comfort and support long-term health, these tiles can be used to create standalone anti-fatigue mats, or areas within an existing E500/7 floor.

Installation

->

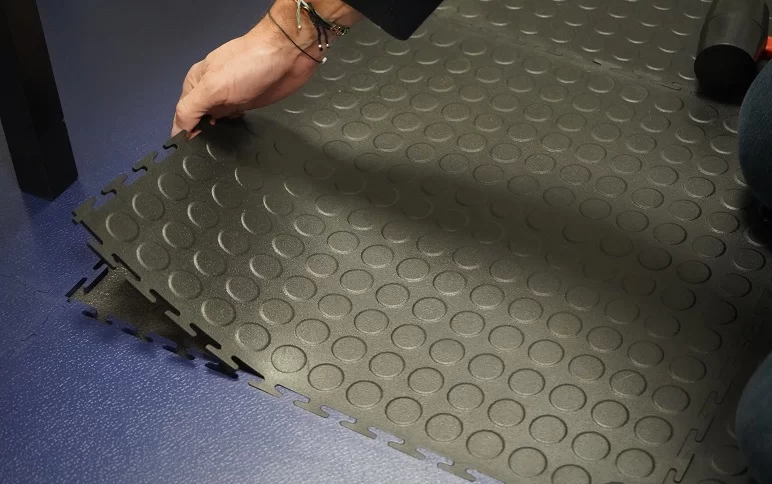

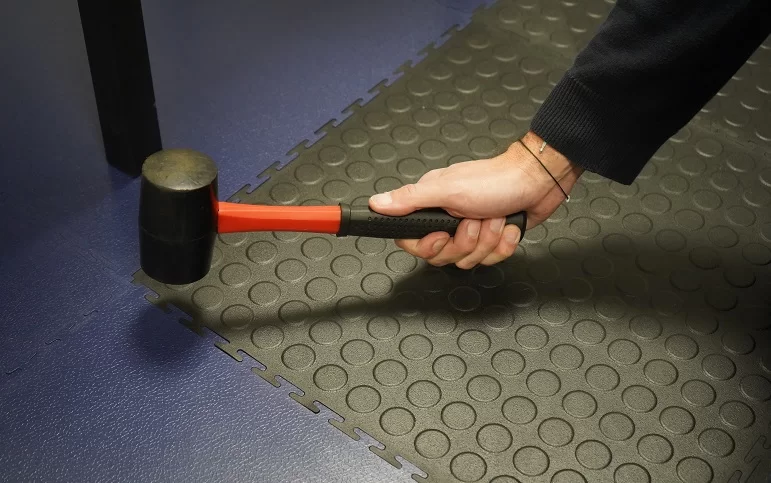

Installing E500 anti-fatigue tiles is exactly the same as installing our regular 7mm floor tiles. There’s no need for adhesives, downtime, or specialist equipment. The interlocking design means the tiles can be laid directly over most existing floors with minimal preparation.

Use our professional installation team, or install yourself using our installation guide.

X-Joint Anti-fatigue Tiles

The X500/7 anti-fatigue floor tile delivers the same great performance and benefits as the E500 version, but with an X-Joint connection. These tiles can be used to create standalone mats, or joined with standard X500/7 interlocking floor tiles to create standing zones.

Colours

Get a free quote
->

Specifications

->

Finish: Microtextured
Material: Anti-fatigue PVC
Joint: X-Joint
Sustainability: 100% Recyclable
Dimensions: 497mm x 497mm
Thickness: 7.6mm variations +/- 0.3mm
Weight: 9kg/m2
Hardness: 62 Standard ISO Shore A (soft)
Thermal Insulation Properties: R Value – 1.58
Sound Insulation Properties: Up to 46db
Fire Rating: Bfl-S1
Chemical Resistance: Good

Perfect for

->

The X500/7 anti-fatigue floor tiles are ideal for areas where employees stand for extended periods, such as assembly lines, packing stations, inspection zones and workbenches. Designed to reduce fatigue, improve comfort and support long-term health, these tiles can be used to create standalone anti-fatigue mats, or areas within an existing X500/7 floor.

Installation

->

Installing these tiles is exactly the same as installing our regular 7mm floor tiles. There’s no need for adhesives, downtime, or specialist equipment. The interlocking design means the tiles can be laid directly over most existing floors with minimal preparation.

Use our professional installation team, or install yourself using our installation guide.

ESD Static Dissipative Anti-Fatigue Tile

Employee comfort is often a key factor in static controlled areas like component assembly lines and labs. This tile is designed to offer anti-fatigue benefits in areas where ESD tiles are required. Use this tile to create standalone ESD comfort mats, or connect with our ESD floor tiles to create embedded zones.

Colours

Get a free quote
->
Buy online
->

Specifications

->

Finish: Microtextured
Material: Anti-fatigue PVC with steel microfibres
Joint: X-Joint
Sustainability: 100% Recyclable
Dimensions: 497mm x 497mm
Thickness: 7.6mm variations +/- 0.3mm
Weight: 9.4kg/m2
Hardness: 62 Standard ISO Shore A (soft)
Resistance: > 3.4 x 104Ω and ≤ 5.0 x 106Ω
Body Voltage: < 100 volts
Thermal Insulation Properties: R Value – 1.58
Sound Insulation Properties: Up to 46db
Fire Rating: Bfl-S1
Chemical Resistance: Good

Perfect for

->

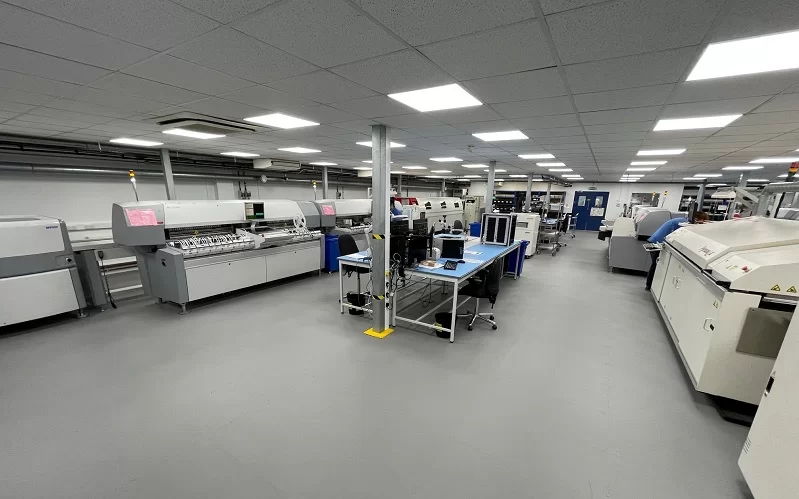

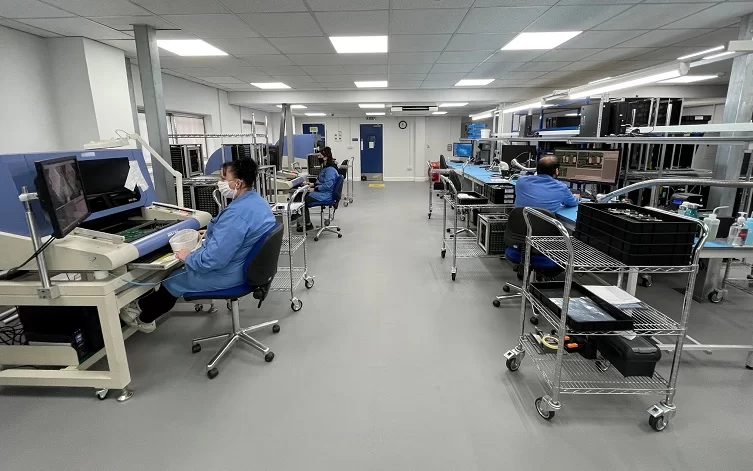

For use in static controlled areas, where employee comfort is a key factor. Component assembly lines, labs, technical facilities, hi-tech engineering, pharmaceutical and electronic production workspaces benefit from a softer ESD floor covering.

Installation

->

Installing our anti-fatigue ESD flooring is slightly more complex than installing our standard floor tiles. You can use the following installation instructions to do it yourself, but we highly recommend speaking to a member of our team before installing an ESD floor. We’ll help clarify all of the required components (e.g. grounding tape, earth bonding plug and grounding cord) and ensure the subfloor is suitable.

A modular alternative to anti-fatigue matting

Anti-fatigue floor coverings play a significant role in promoting employee health, safety and productivity in the workplace. Yet traditional solutions like loose-laid matting often cause their own safety issues. For example, they move around or create trip hazards with curling corners (usually caused by trolley and cage traffic).

That’s why we developed our own range of anti-fatigue floor tiles which insert straight into our original modular flooring system. Businesses can create dual-purpose areas, without the need for loose matting on top of the floor covering. Use our standard tiles in high-traffic zones, and simply insert anti-fatigue tiles into standing areas such as workstations, packing benches, and production lines.

Like all Ecotile floor tiles, our anti-fatigue tiles are designed for industry. They’re durable enough to withstand tough environments, yet soft enough to improve your team’s comfort, well-being, and performance.

  • Reduces fatigue and physical strain
  • Helps prevent back pain and joint problems
  • Cushioned surface supports prolonged standing
  • Improves productivity and focus
  • Minimises musculoskeletal disorders
  • Eliminates trip hazards from loose mats
  • Easy to clean, reposition, and maintain
  • Seamlessly integrates with standard Ecotile flooring

To find out how Ecotile’s anti-fatigue floor tiles can support your workforce, get in touch with us today or visit our online shop.



Frequently asked questions

Some of the most common questions we get from engineers, facility managers, and health & safety teams.

How are anti-fatigue floor tiles different to standard Ecotiles?

->

They’re manufactured in exactly the same way as all our floor tiles. But they are produced to a different Shore hardness to our original floor tiles. Our anti-fatigue tiles have a rating of 62, giving them a medium/soft composition. This means they’re more flexible and provide enhanced comfort for uses standing on them for extended periods.

What's the benefit vs loose-lay anti-fatigue mats?

->

Our anti-fatigue floor tiles are the same size as our original tiles, so they’re designed to sit flush within the modular floor tile system. This means there’s no trip hazard, no loose-lay mats getting curled up by trolleys and cages. Just insert them into an Ecotile floor where they’re most needed – around workstatons or anywhere people spend extended time standing.

Will anti-fatigue Ecotile floor tiles work within a static controlled area?

->

We manufacture a specific ESD anti-fatigue floor tile, which works in conjunction with our standard ESD tile system. Softer and more forgiving for extended periods of standing, these tiles protect from fatigue as well as static damage to components and products.

What surface finishes are anti-fatigue tiles available in?

->

Our E500/7 floor tile system has a raised disc finish for extra comfort, and is available in black. Our X500 anti-fatigue tiles are available with a textured finish to match our X-Joint tiles surface finish.

Are Ecotile anti-fatigue tiles recyclable?

->

Yes they are. At the end of their useful life we can recycle them into the next generation of floor tiles.
