7mm Interlocking floor tiles

- The go-to solution for most applications
- Easily withstands constant vehicle traffic
- Manufactured by us in Britain
download
Download PDF Datasheet
Product

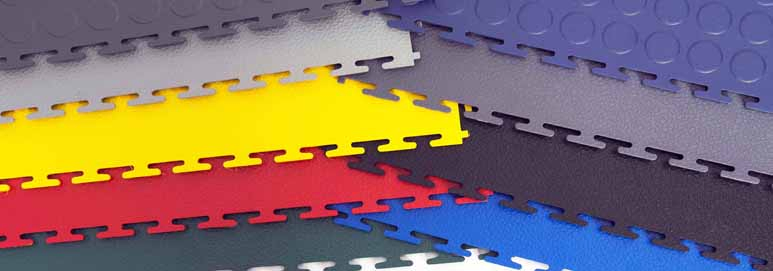

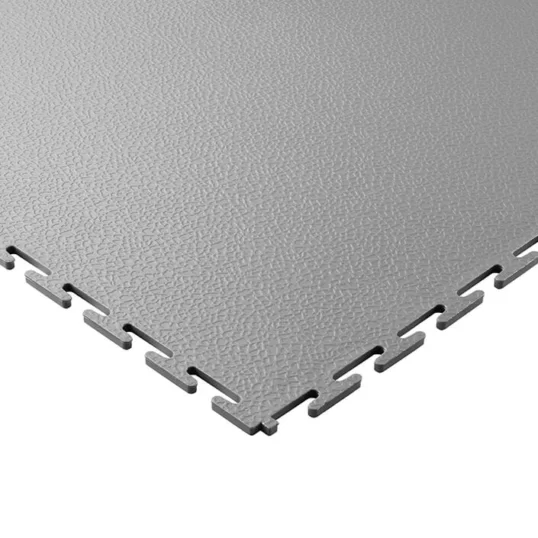

E500/7 Original Interlocking Floor Tile

The E500/7 is our original 7mm thick interlocking tile with a T-Joint connection. Available in a range of colours with your choice of textured or raised disc finish.

Colours

Specifications expand_more

Finish: Textured or Raised Disc
Material: PVC (Choose from recycled or virgin)
Joint: T-Joint
Sustainability: 100% Recyclable
Dimensions: 500mm x 500mm
Thickness: 7.6mm variations +/- 0.3mm
Weight: 9kg/m2
Hardness: 90-92 Shore A
Thermal Insulation Properties: R Value – 1.58
Sound Insulation Properties: Up to 46db
Fire Rating: Bfl-S1
Chemical Resistance: Good EN 13529

Versions expand_more

This product is available in four versions. The original E500/7 tile made from 100% virgin material, a recycled option made for enhanced sustainability (though all versions are fully recyclable), an anti-fatigue version for enhanced comfort, and an ESD version designed to safely dissipate static in sensitive environments like electronics production facilities.

Perfect for expand_more

The E500/7 tile is a versatile all-rounder, designed to perform in a wide range of demanding environments. It’s a great fit for factories and warehouses, but just as effective in places like garages, workshops, storage facilities, schools, offices, and leisure facilities. Whether you’re dealing with heavy forklift use or just need a comfortable surface for foot traffic, the E500/7 excels. You’ll also find it in police and fire stations, exhibitions, and retail spaces where flexibility and speed of installation are key.

Installation expand_more

Installing E500/7 interlocking floor tiles is quick and easy. There’s no need for adhesives, downtime, or specialist equipment. The interlocking design means the tiles can be laid directly over most existing floors with minimal preparation. That makes them perfect for busy sites where stopping production isn’t an option. And if you ever need to move or replace a tile, it’s just as easy.

Use our professional installation team, or install yourself using our installation guide.

X500/7 X-Joint Interlocking Floor Tile

The X500/7 offers an alternative design and features a distinctive X-Joint connection and a lightly textured surface finish. The X500 7mm thick interlocking floor tile is available in 7 colours.

Colours

Specifications expand_more

Finish: Microtextured
Material: PVC (Choose from recycled or virgin)
Joint: X-Joint
Slip Rating: R10
Sustainability: 100% Recyclable
Dimensions: 497mm x 497mm
Thickness: 7.6mm variations +/- 0.3mm
Weight: 9kg/m2
Hardness: 90-92 Shore A
Thermal Insulation Properties: R Value – 1.58
Sound Insulation Properties: Up to 46db
Fire Rating: Bfl-S1
Chemical Resistance: Good EN 13529

Versions expand_more

This product is available in five versions. The original X500/7 tile made from 100% virgin PVC material, a recycled version made for enhanced sustainability, an anti-fatigue version for improved comfort, an ESD version for static sensitive environments, and an ESD anti-fatigue version for anti-static standing areas.

Perfect for expand_more

Just like the E500, this tile is built to handle tough environments while offering flexibility across a wide range of settings. It’s a great choice for factories, warehouses, and storage areas, but also performs brilliantly in garages, workshops, schools, offices, and leisure centres. Whether it’s heavy forklift traffic or everyday footfall, the X500 tile is the ideal flooring solution.  You’ll also see it used in retail spaces, exhibitions, and emergency service buildings, where fast installation makes all the difference.

Installation expand_more

Installing the X500/7 is quick and easy. There’s no need for adhesives, downtime, or specialist equipment. The interlocking design means the tiles can be laid directly over most existing floors with minimal preparation. That makes them ideal for busy sites where stopping production isn’t an option. And if you ever need to move or replace a tile, it’s just as easy.

Use our professional installation team, or install yourself using our installation guide.

The original loose-lay interlocking floor tile

Available in two interlocking joint designs, our 7mm interlocking floor tiles are the go-to solution for most industrial applications, including factories, warehouses and commercial garages.

They deliver exceptional durability where it matters most, withstanding constant use by forklifts, aisle pickers, pallet trucks, pump trucks and heavy foot traffic.

With an R10 slip resistance rating and Bfl-S1 fire classification, they help you maintain a safer working environment. With a wide range of colours available, it’s easy to create safety walkways and colour coded work zones around production lines, machinery, workstations and more.

The 7mm tile is our best-selling flooring solution used by hundreds of businesses worldwide, including Amazon, Royal Mail and Rolls-Royce.

  • Impact resistant
  • Chemical resistant
  • Flame retardant (Bfl-s1)
  • Abrasion and slip-resistant (R10 Rated)
  • Suitable for heavy rolling vehicles and point loads
  • Create coloured zoning and walkways
  • Reduce dust and insulate from cold
  • Easy to clean and maintain
  • Hassle-free installation
  • No curing times required
  • 100% recyclable

Perfect for businesses who can’t afford to stop

Can’t put your business on pause just to redo the floor? Ecotile can be fitted with zero downtime – unlike epoxy resin, coatings and paints that can shut your site down for days.

Our interlocking floor tiles can be installed in sections without causing disruption. Your business can continue to operate whilst installation takes place directly on top of your original floor. You won’t need to move or recalibrate machinery and you can start using the new floor straight away.

Save time and money on concrete repairs

Eliminate the cost of repairing damaged and worn concrete for good. Install Ecotile over your subfloor without adhesives, damp-proof membranes or screed. Use our professional installation team, or install yourself.

Unlike other floor coverings, our modular floor tiles can be easily re-arranged to suit changing business needs. And if a tile gets damaged, no need to worry about calling an expert – just pop it up and replace it with a new one.

Protect the original subfloor

When you install Ecotile, there’s no need for nasty chemicals, adhesives or permanent coatings that damage the original floor. Whether you’re in a leased building or just want to protect your concrete subfloor from damage, the Ecotile interlocking system is a convenient solution. When it’s time to move on, the tiles can be lifted easily, leaving the concrete floor in it’s original condition – no landlord hassle or charges.

Recyclable and long-lasting

Our long-lasting interlocking floor tiles are designed to help you reduce costs and environmental impact. Once they reach the end of their useful 20+ year lifespan, we’ll collect or buy back your tiles and use them to make our range of recycled tiles.

Call +441582219009 or email [email protected] for a free, no-obligation quote and site survey.
